Charger 12VDC/24VDC

Product: GBC Series

Power: 1000W

Application: Lead-Acid/Lithium/Lifepo4 battery charger

Input: 90VAC-286VAC

Frequency: 40Hz-70Hz



Product Function

Ability to charge Flooded Lead-Acid, Gel, AGM, LiFePo4 chemistries.
The unit will accept a wider range of 90-280Vac input power and convert it to approximately 12/24 Vdc to power charge batteries.
In normal operation, the unit accepts AC input voltage and converter it to DC output which has a three-stage timer-based charging algorithm.


Three-stage timer-based charging algorithm

Most suitable for fast battery charging

Operate with a wider input voltage range

Compact design

High efficiency

Highly reliable MOSFET base design

Smart fan control

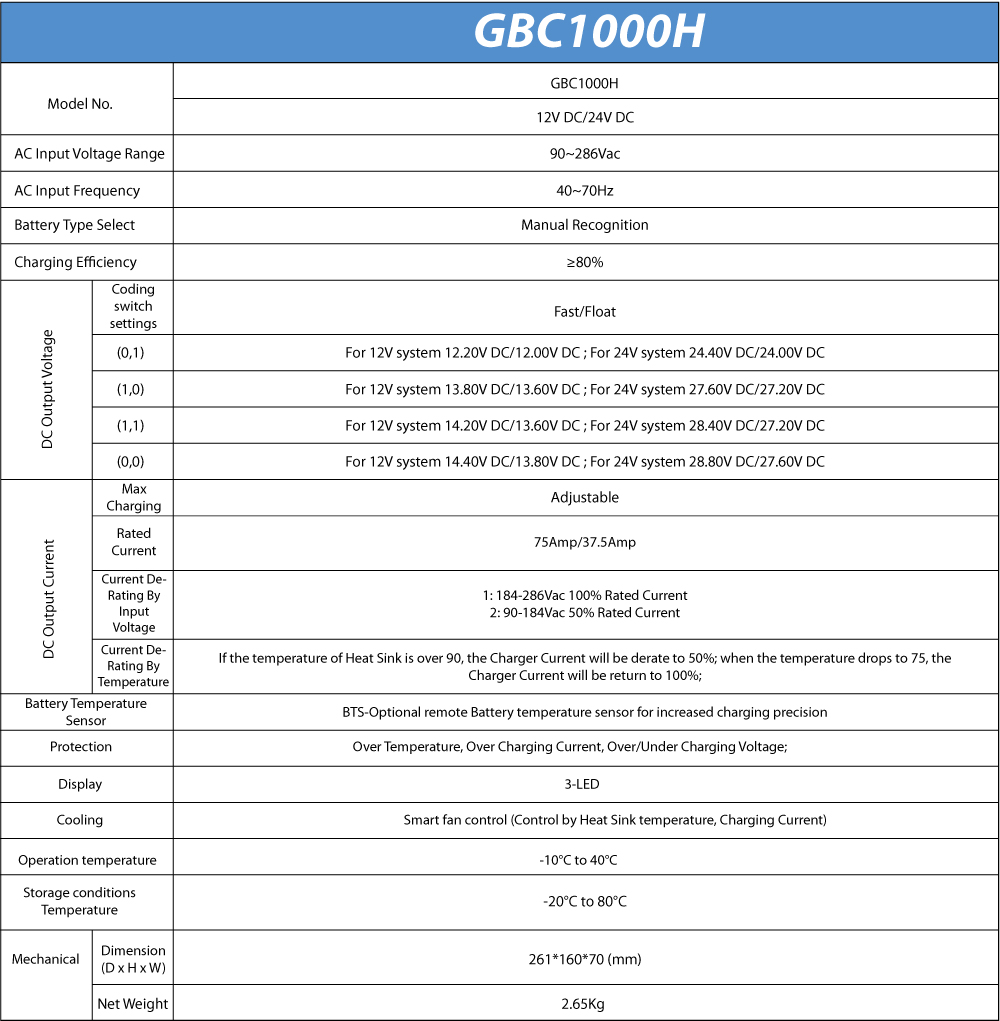

technical details
