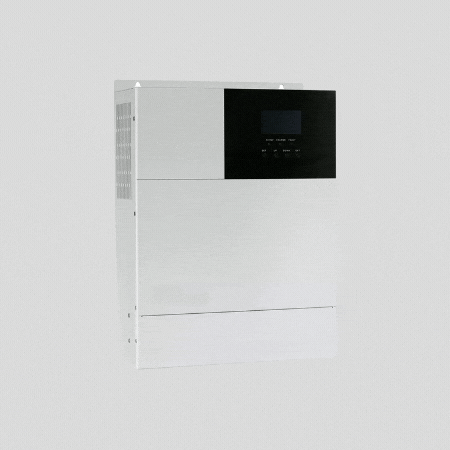

HF4830S60-H

HF48-H series is a new hybrid solar charge inverter, which integrates solar energy storage & means charging energy storage and AC sine wave output.

Thanks to DSP control and advanced control algorithm, it has high response speed, high reliability, and high industrial standard.

---

MAIN FEATURES

1. It adopts full-digital double closed-loop control, combined with advanced SPWM technology to output pure sine waves.
2. Two output modes: mains electricity bypass and inverter output; uninterrupted power supply.
3. Four charging modes: PV Only, Mains Electricity Priority, PV Priority, and PV & Mains Electricity hybrid charging.
4. Advanced MPPT technology with 99.9% efficiency.
5. Wide MPPT voltage range: 120-450V.
6. Individually on load capacity.
7. It comes with double lithium battery activation modes: mains and PV, and supports lead-acid battery and lithium battery access.
8. Comes with an LCD display and 3 LED indicators that can clearly indicate the status and data.
9. Rocker switch for AC output control.
10. Power saving mode, reduce no-load loss.
11. Intelligent variable-speed fan to efficiently dissipate heat and extend system lifespan.
12. All-round protection for solar panels includes overload and short circuit protection, under-voltage and over-voltage protection, and reverse polarity protection.
