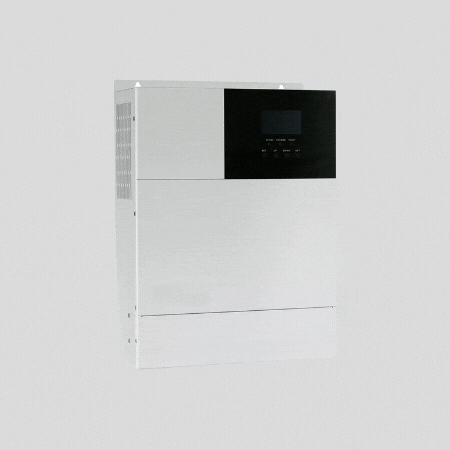

HF4830S60

HF series is a new hybrid solar charge inverter, which integrates solar energy storage &means charging energy storage and AC sine wave output.

The product is suitable for: HF4825U60 | HF4830U60 | HF4835U80

---

Main Features

1. It adopts full-digital double closed-loop control, combined with advanced SPWM technology to output pure sine waves.
2. Two output modes: mains electricity bypass and inverter output; uninterrupted power supply.
3. Four charging modes: PV Only, Mains Electricity Priority, PV Priority, and PV & Mains Electricity hybrid charging.
4. Advanced MPPT technology with 99.9% efficiency.
5. User-defined charging parameters setting(voltage, current, and mode), and suitable for various types of energy storage batteries.
6. Rocker switch for AC output control.
7. Power saving mode, reduce no-load loss.
8. Intelligent variable-speed fan to efficiently dissipate heat and extend system lifespan.
9. Lithium battery activation function, allow lead-acid battery and lithium battery access.
10. All-round protection for solar panels includes overload and short circuit protection, under-voltage and over-voltage protection, and reverse polarity protection.
11. Support a variety of user-friendly communication modules, such as RS485(GPRS, WiFi, Bluetooth), CAN and USB, etc., and feasible to connect with computer and mobile phone to realize remote control.

technical details
