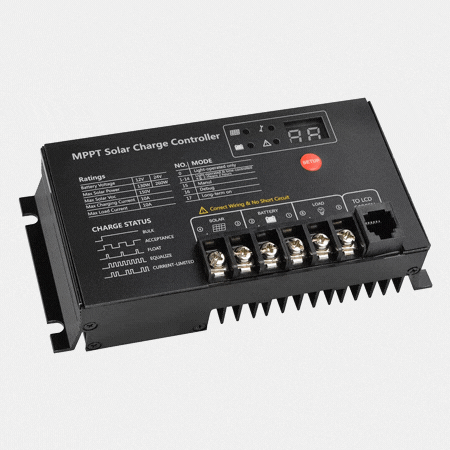

MT2410
SR-MT Maximum Power Point Tracking Series Solar charge controller
Main Features
1. Support 100V maximal open-circuit voltage of the photovoltaic panel.
2. Support 12V/24V automatic identification of lead-acid battery.
3. Support lithium battery application.
4. The advanced dual-peak or multi-peak tracking technology: When the solar panel is shadowed or part of it breaks down, there will be multiple peaks of the I-V curve. The controller is still able to accurately track the maximum PowerPoint.
5. The maximum power point tracking algorithm can significantly improve the energy utilization efficiency of photovoltaic systems. The charging efficiency is 15% to 20% higher than the conventional PWM method.
6. MPPT tracking efficiency is up to 99.9%.
7. Advanced digital power technology raises the circuit energy conversion efficiency to 98%.
8. Four-stage charge mode: MPPT - equalizing charge - boost charge - floating charge.
9. Limited current charge mode: in case of the excessive power of the photovoltaic battery, the controller automatically reduces the power to the rated value.
10. It is convenient for users to find out the system fault with the fault indicator.
11. The operation data and status can be displayed on the RM-5 LCD screen.
12. It can automatically identify day or night and enhance the flexibility of the load system with multiple load control modes.
13. The controller provides overcharge, over-discharge, overload, short circuit, reverse connection, overheat, TVs, and anti-reverse charge protection.
